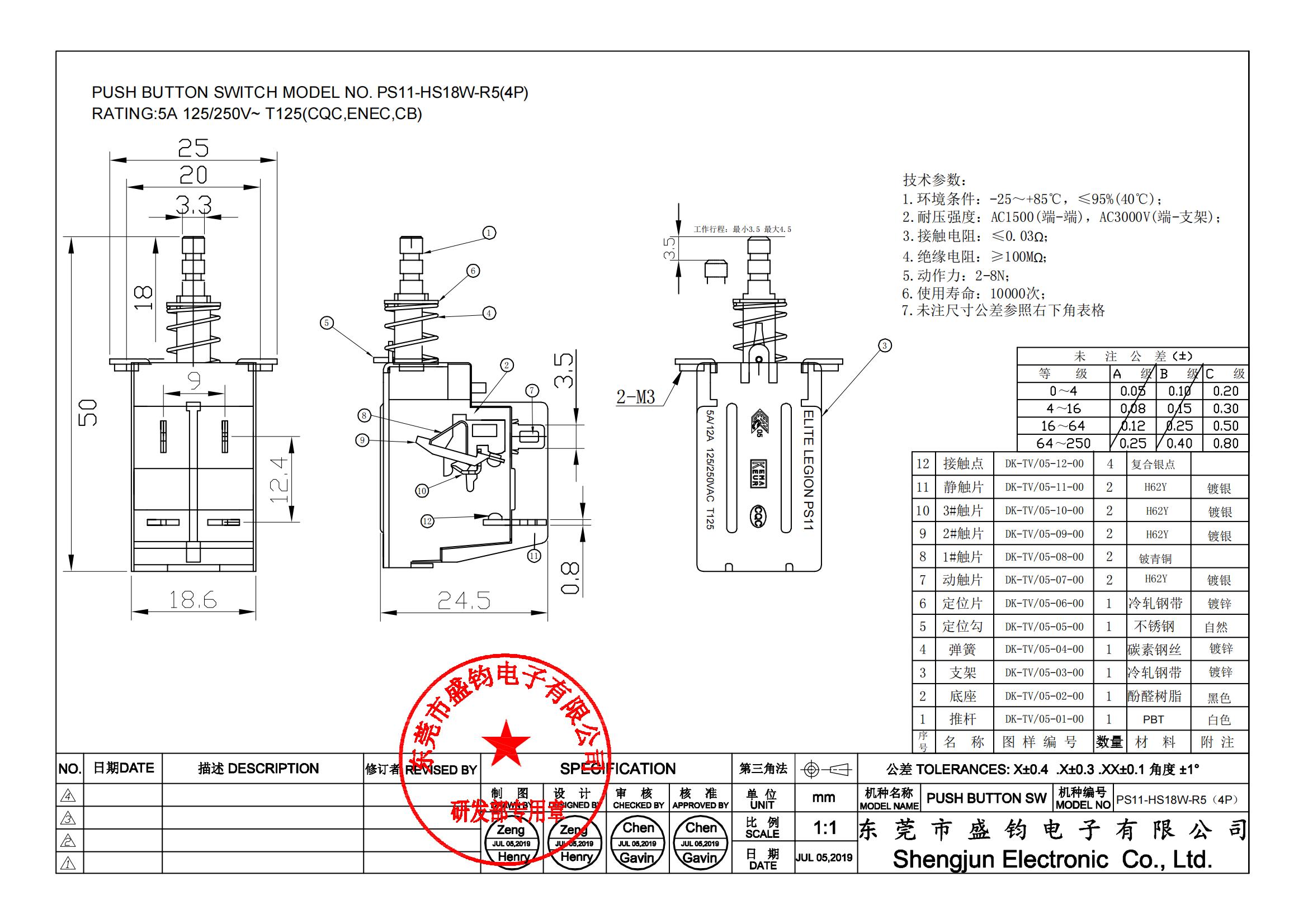

Raing 额定: 5A 125/250VAC (ENEC,CQC,CB)

                  12A 250VAC (ENEC,CQC,CB)

                  16A 250V (ENEC,CQC,CB)

                  5/80A 250VAC  uT125  (ENEC,CQC,CB)

ELECTRICAL(电气特性):

(接触电阻) INITIAL CONTACT RESISTANCE: 30mΩ Max.

(操作力量) OPERATION FORCE: 500±200gf

(绝缘电阻) INSULATION RESISTANCE: 100MΩ Min. 500VDC

(电气寿命) ENDURANCE: 10,000 CYCLES

(耐 电 压) WITHSTAND VOLTAGE: 1 KVAC FOR 1MINUTE

MATERIAL (材质)：

(基座) TERMINAL BASE: PHENOLIC(UL 94V-0)

(柄) ACTUATOR: PBT+30%G.F.(UL 94V-0)

(接触片) CONTACT: Ag Alloy

(弹簧) SPRING: STAINLESS STEEL WIRE
